Ring Lock Couplings, Swag Rings, Shell Ferrules, Brass Valves Exporters in India.
Miller Type Couplings & Fittings
Flohose Fittings & Accessories
Miller Type Couplings (M-Type Couplings) complete Set of Male hose / Female hose / Lever ring & Rubber O Ring, Galvanized. Our couplings have angular deviation of 28 degrees with working pressure up to 20 Bar max.
Sizes: 2" to 12"
Dia Size: 2" to 12"
Finish: Hotdip Galvanized
Sizes: 2" to 12"
Dia Size: 2" to 12"
Finish: Hotdip Galvanized
| MILLER TYPE MALE WITH FLANGE | |
|---|---|
| Diameter Inch. | Part No. |
| 2" | FHMMF-102 |
| 3" | FHMMF-103 |
| 3.5" | FHMMF-103A |
| 4" | FHMMF-104 |
| 6" | FHMMF-106 |
| 8" | FHMMF-108 |
| 10" | FHMMF-110 |
| 12" | FHMMF-112 |

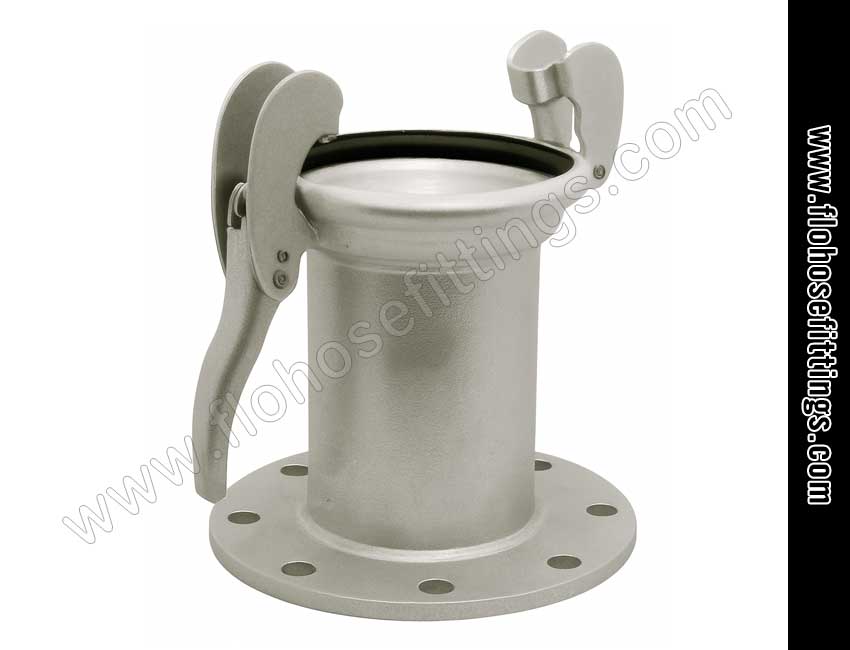

| MILLER TYPE FEMALE WITH FLANGE | |
|---|---|
| Diameter Inch. | Part No. |
| 2" | FHMFF-102 |
| 3" | FHMFF-103 |
| 3.5" | FHMFF-103A |
| 4" | FHMFF-104 |
| 6" | FHMFF-106 |
| 8" | FHMFF-108 |
| 10" | FHMFF-110 |
| 12" | FHMFF-112 |

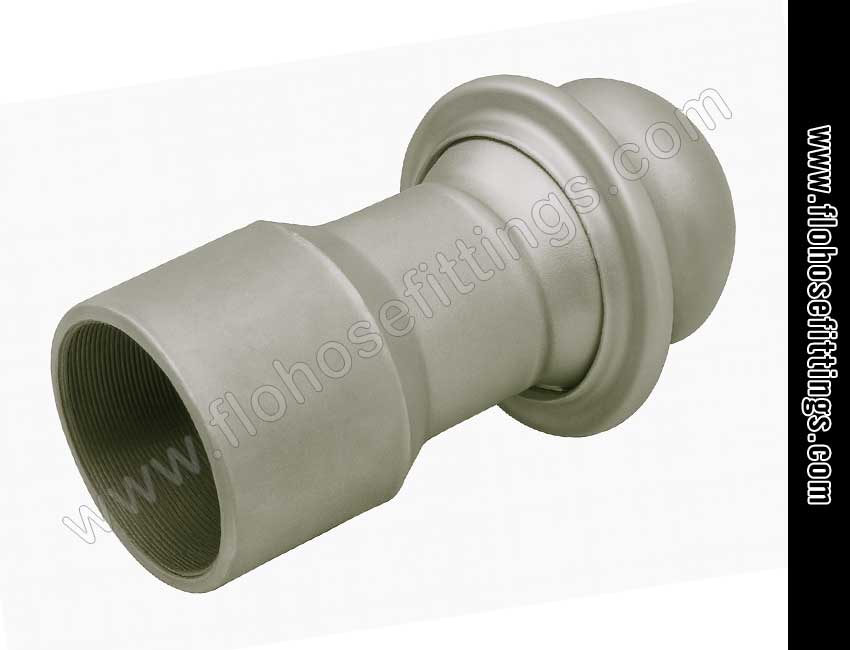

| MILLER TYPE MALE WITH MALE THREADED END | |
|---|---|
| Diameter Inch. | Part No. |
| 2" | FHMMMT-102 |
| 3" | FHMMMT-103 |
| 3.5" | FHMMMT-103A |
| 4" | FHMMMT-104 |
| 6" | FHMMMT-106 |
| 8" | FHMMMT-108 |
| 10" | FHMMMT-110 |
| 12" | FHMMMT-112 |

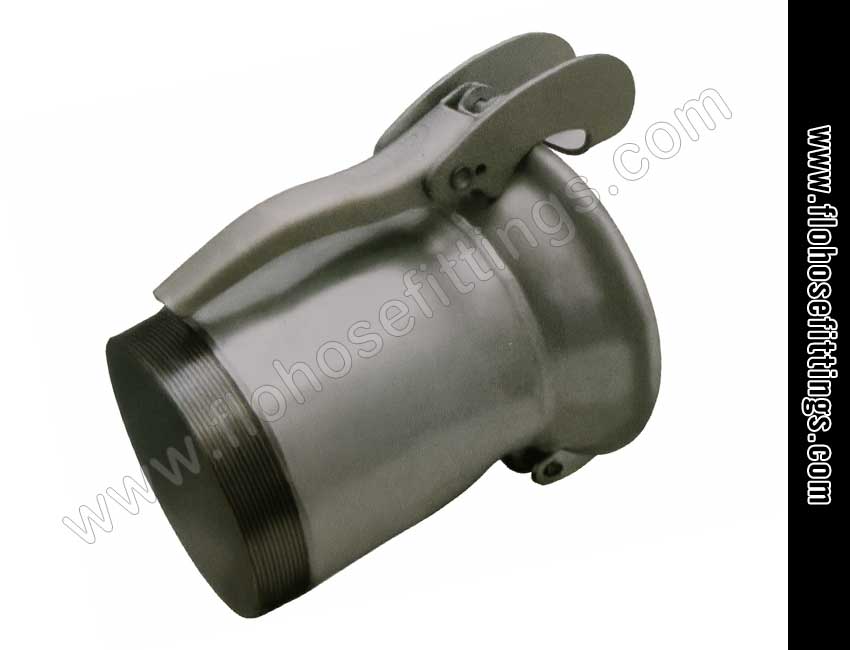

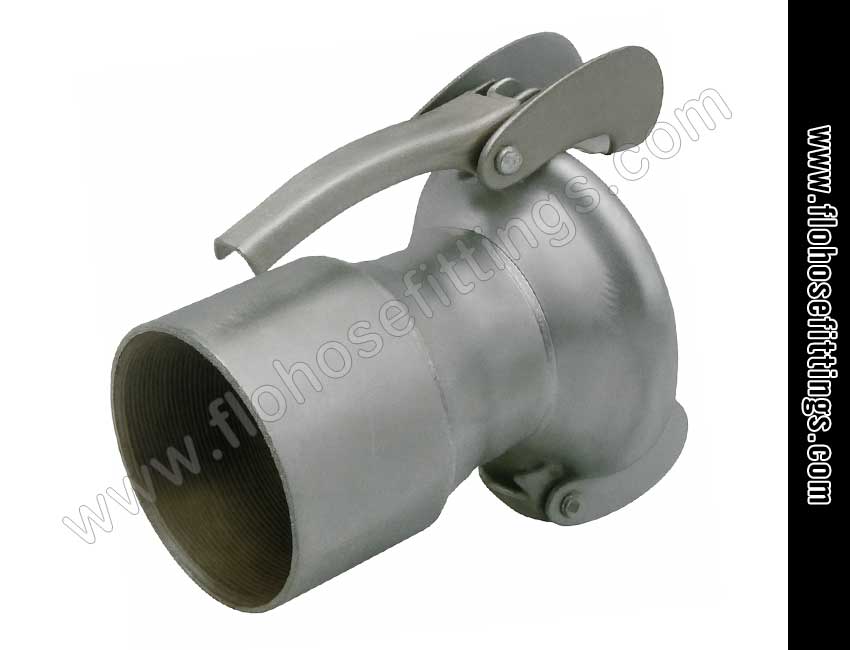

| MILLER TYPE FEMALE WITH MALE THREADED END | |
|---|---|
| Diameter Inch. | Part No. |
| 2" | FHMFMT-102 |
| 3" | FHMFMT-103 |
| 3.5" | FHMFMT-103A |
| 4" | FHMFMT-104 |
| 6" | FHMFMT-106 |
| 8" | FHMFMT-108 |
| 10" | FHMFMT-110 |
| 12" | FHMFMT-112 |
| MILLER TYPE MALE WITH FEMALE THREADED END | |
|---|---|
| Diameter Inch. | Part No. |
| 2" | FHMMFT-102 |
| 3" | FHMMFT-103 |
| 3.5" | FHMMFT-103A |
| 4" | FHMMFT-104 |
| 6" | FHMMFT-106 |
| 8" | FHMMFT-108 |
| 10" | FHMMFT-110 |
| 12" | FHMMFT-112 |
| MILLER TYPE FEMALE WITH FEMALE THREADED END | |
|---|---|
| Diameter Inch. | Part No. |
| 2" | FHMFFT-102 |
| 3" | FHMFFT-103 |
| 3.5" | FHMFFT-103A |
| 4" | FHMFFT-104 |
| 6" | FHMFFT-106 |
| 8" | FHMFFT-108 |
| 10" | FHMFFT-110 |
| 12" | FHMFFT-112 |

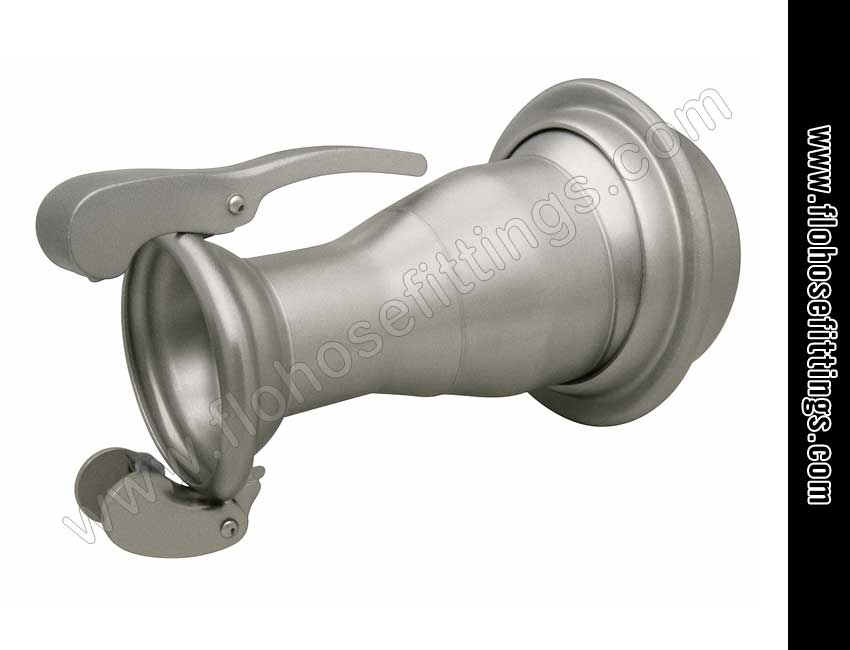

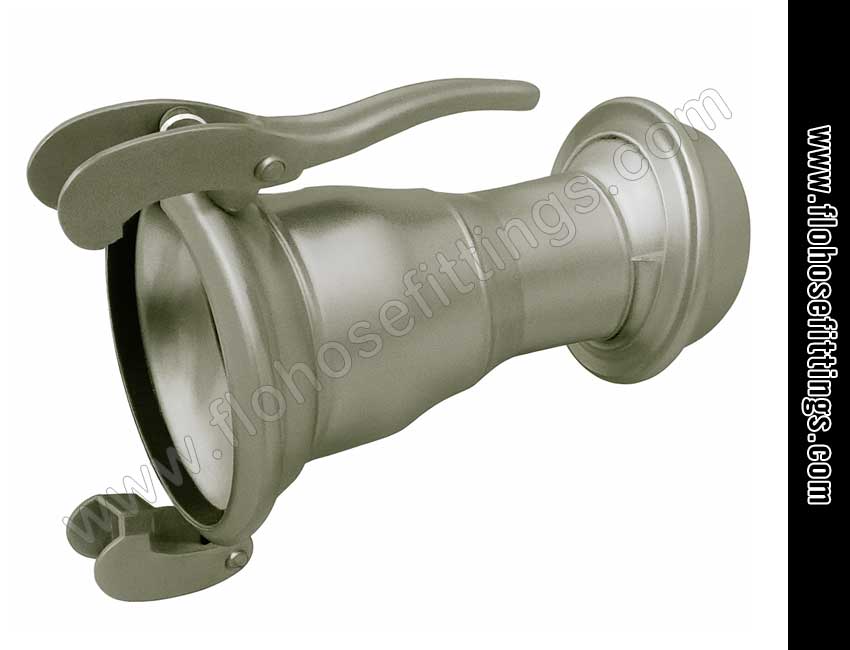

| MILLER TYPE REDUCER | |
|---|---|
| Diameter Inch. | Part No. |
| 2"x3" | FHMR-102 |
| 3"x4" | FHMR-103 |
| 4"x6" | FHMR-104 |
| 6"x8" | FHMR-106 |
| 8"x10" | FHMR-108 |
| 8"x12" | FHMR-109 |
| 10"x12" | FHMR-112 |
| MILLER TYPE ENLARGER | |
|---|---|
| Diameter Inch. | Part No. |
| 2"x3" | FHMR-102 |
| 3"x4" | FHMR-103 |
| 4"x6" | FHMR-104 |
| 6"x8" | FHMR-106 |
| 8"x10" | FHMR-108 |
| 8"x12" | FHMR-109 |
| 10"x12" | FHMR-112 |

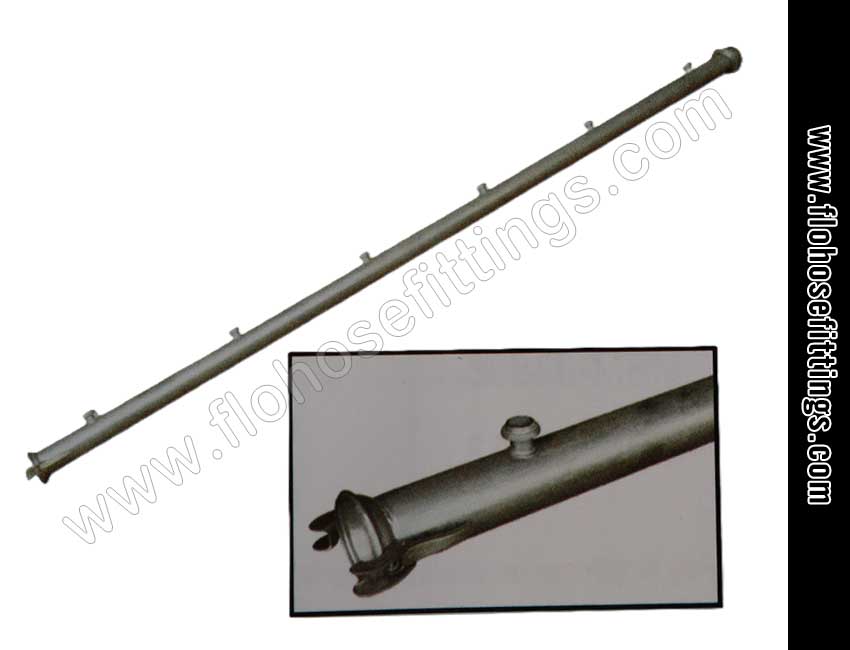

| MILLER TYPE HEADER PIPE WITH MUSHROOM - 6" |
|---|
